Multifunction Aluminum Plastic Automatic Blister Packing Machine PLC Controlled
Applications
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.
Description
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.
3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Stepping motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
SPECIFICATIONS
| Item Model | DPP-350A | DPP-250A | DPP-140A |
| Cutting Frequency (ideal sizes:80*57mm) | 15-45 cutting/min | 15-45 cutting/min | 15-45 cutting/min |
| Max. Forming Area and Depth | 350×130×15 | 250×120×15 | 140×110×15 |
| Adjustable Scope of Travel(mm) | 30-140mm | 30-130mm | 30-120mm |
| Packaging material (I.D.Φ75) | PVC(mm) | (0.15-0.6) ×350×(Φ400) | (0.15-0.4) ×260×(Φ400) | (0.15-0.4) ×160×(Φ350) |
| PTP(mm) | (0.02-0.15) ×350×(Φ400) | (0.02-0.15) ×260×(Φ400) | (0.02-0.15) ×160×(Φ350) |
| Paper(mm) | (50-100)g/㎡ ×350×(Φ400) | (50-100)g/㎡ ×260×(Φ400) | (50-100)g/㎡ ×160×(Φ350) |
| Power | 380V 50Hz 9.5kw | 380V 50Hz 8kw | 380V 50Hz 5.5kw |
| Air compression (Don't Provide) | 0.6-0.8Mpa ≥0.6m³/min | 0.6-0.8Mpa ≥0.45m³/min | 0.6-0.8Mpa ≥0.4m³/min |
| Recycle water or circulating water consumption | 60-100L/h | 40-80L/h | 40-80L/h |
| Overall Dimension(L*W*H)(including foundation) | 3650×850×1700 | 2900×750×1600 | 2400×650×1450 |
| Body Dimension of Each Part | 1850×850×1700(front) | 1500×750×1600(front) | 1350×650×1250(front) |
| 1800×850×1650(back) | 1400×750×1450(back) | 1050×650×1450(back) |
| Weight | About 2000kg | About 1200kg | About 800kg |
PACKING PRODUCT

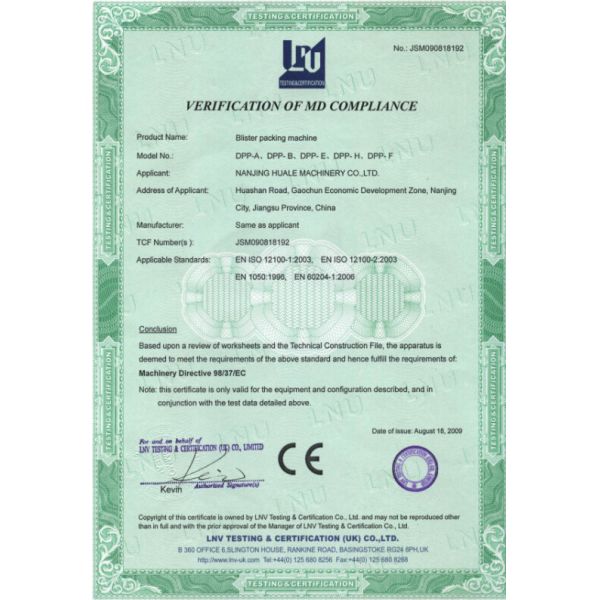

CERTIFICATION
