380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery

Name: 380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery
Brand: HUALE MACHINUARY
Price: 1 USD

China 380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery wholesale

Brand Name : HUALE MACHINUARY

Model Number : DTJ-V

Certification : CE/ ISO9001

Place of Origin : china

MOQ : 1 set

Price : negoation

Supply Ability : 20 Set per month

Delivery Time : 30 working days after received your payment

Packaging Details : wooden box

product name : semi-automatic capsule filling machine

capsule size : 00#-5# and safe capsule A-E

Power supply : 380V 50Hz 2.1Kw

application : powder or granules

output : 12500-22500 pcs/h

Contact Now

Hot Sale Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery

Introductions:

This semi automatic herbal capsule filling machine is suitable for medium and small batch production.
This machine is used widely by medium & small pharmaceutical factory, hospital preparation lab, health supplement industry etc.

Performance and characteristic

It adopts programmable control system, touch panel operation, step-less transducer speed-shift and electronic automatic counter.
It automatically completes the action of position, separation, filling, locking etc.
The dosage is accurate and the complete operation is convenient.
The overall machine is made of stainless steel and it is suitable for filling with powder and granules.

Technical parameters---Old type

Machine Model	DTJ-V
Output	12500-22500 Capsules/H
Capsule Size	Suitable for filling capsule size 00#-5# Safety capsule size:A-E (need to exchange the spare parts/molds accordingly)
Dosage Type	Powder/Pellet/granules
Power Supply	380V 50HZ 2.1KW
Overall dimension.	1200mm x 700mm x 1600mm
Net weight.	330kg

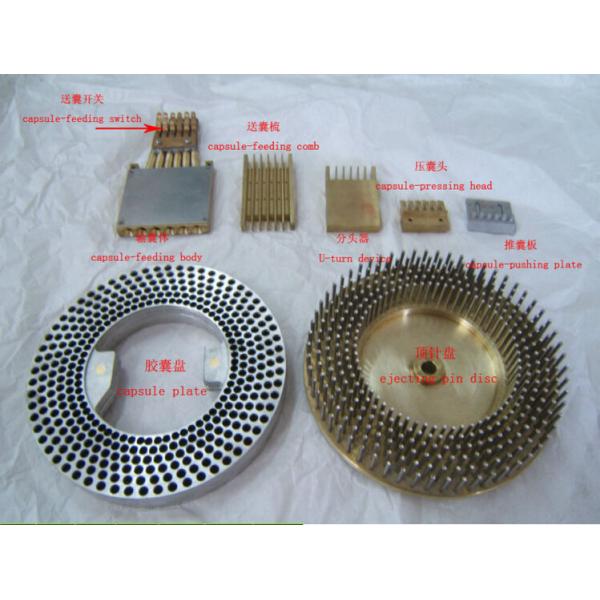

Machine parts Introduction

Technical parameters---New type

Capsule size	No. 000#-3#
Capacity(capsules/h)	10000-22500((Depending on the operation of skilled workers)
Power supply	380V 3Pharse 4.0kw
Vacuum pump	40m3/h
Capacity of air compressor	0.03m3/min 0.7Mpa
Overall dimensions:(mm)	11407001630
Packing dimension:(mm)	16508001750
Net weight:(Kg)	430
Gross weight:(Kg)	500

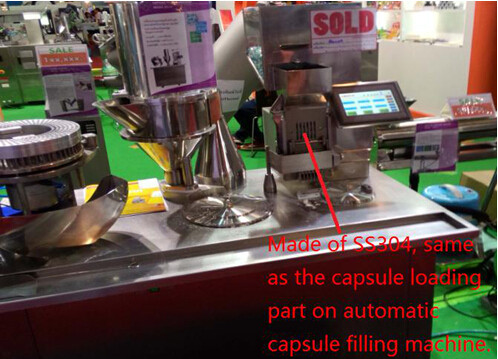

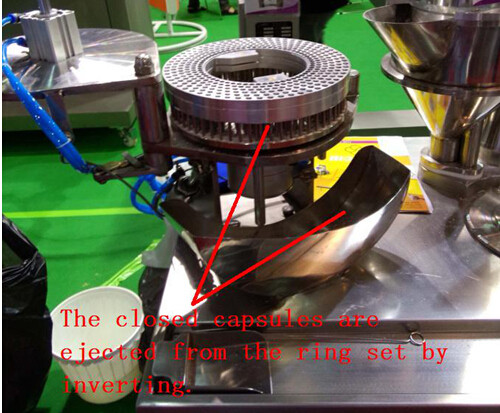

Machine part introduction

ELECTRIC CONFIGURATION

380V 50Hz 3Pharse 4wires
Name	Model	Brand	Qua	Remark
Single pole rotary vane vacuum pump	XD-040	Shanghai Fu Yu	1
three phase asynchronous motor	Y263M2-4	DA SU	2
Three phase vertical gear reduction motor	TJH400W-7.5:1	TAI JIE	1	Silent type
Frequency converter	DVM-2S004G-02	Delisle	3
PLC	DVD32ES200T	DELTA	1
Touch screen	MT6070iH	Weinview	1
Worm gear reducer (double out axles)	NMRV50-15:1-63B5	DING ZU	1
transformer	JBK3-63	RUI AN	1
intermediate relay	JIX-2C	OMRON	2
AC relay	CJX2-12	Schneider	2
Breaker	DZ47-63 D20	Schneider	1
Breaker	DZ47-63 C6	Schneider	1
Emergency stop switch	Y090-11X	CHINT	1
Filling cylinder	SC50X125	Adyk	1
Lock cylinder	MAL100X80	Adyk	1
Air filter pressure regulating valve	AL-2000	Adyk	1
photoswitc	GL-8F	JAPAN	1
proximity switch	H12-D5NK	RUI XIANG	1

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.
