Product name: Automatic Cartoning Machine For Small Medicine Bottle Packing with speed 50-100boxes/min
Instroduction:
It can pack different sizes and specifics of tubes or similar objects.
The working process include automatic leaflet folding inserting, carton opening, object inserting,batch number embossing and box sealing.
All working stations equipped electronic sensor for running status monitoring.
Performance and characteristics:
1. It adopts PLC control and touch screen operating system with speed adjusting by step-less motor.
2. Protecting automatically for overloading.
3. Automatic trouble shooting, alarming and production counting functions are all programmed in the machine
4. stable performance, easy to change different sizes of products.
5. stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
6. Rotary feeder can feed different sizes of tubes or bottles by equipping with speed adjusting motor.
TECHNICAL PARAMETER
| Machine Model | DXH-120WP |
| Max. Encasing speed | 50-100 boxes/min |
| Carton | Quality requirement | 250-350g/㎡(according to carton size) |
| Specification | (50-200)×(20-80)×(14-45)mm |
| Leaflet | Quality requirement | 55-65g/㎡ |
| Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) |
| Compressed air | Pressure | ≥0.5Mpa |
| Consumption | 120-160L/min |
| Motor Power | 220V 50HZ 0.75kw |
| Dimension | 4200×1200×1600mm (L×W×H) |
| Net weight | 1600kg |

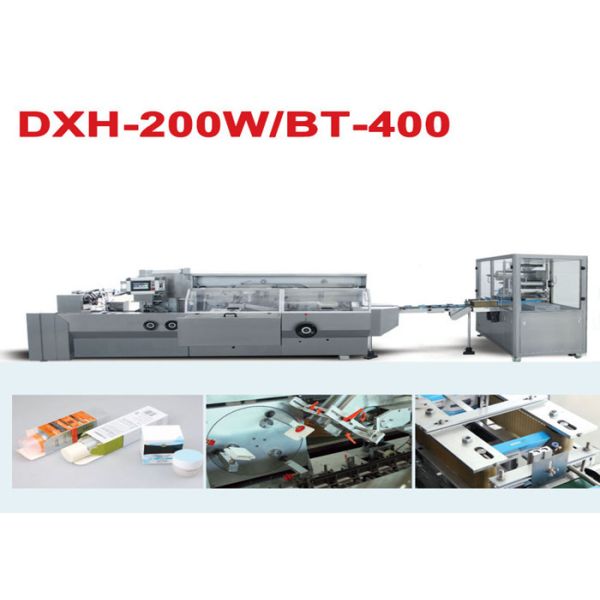

This machine can also connect cellophane overwraping machine to form a outer packaging production line which are used widely in cosmetic industry.
WARRANTY
- Technical Support(24 hours on line support by email, skype, whatsapp, wechat).
- Loading information(loading port, destination port, shipping date, CBM, weight, etc.)
- Video for debugging after sent products.
- Pre-maintance.
- Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
- Welcome send us samples to test on our machine and we will take video for you to confirm.
- Welcome visit our factory for checking machine and offer training course for your workers.
PACKAGE
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separately.
- If there are strict requirements, chassis can use iron girders.
AFTER SERVICE:
For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem.
For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.
